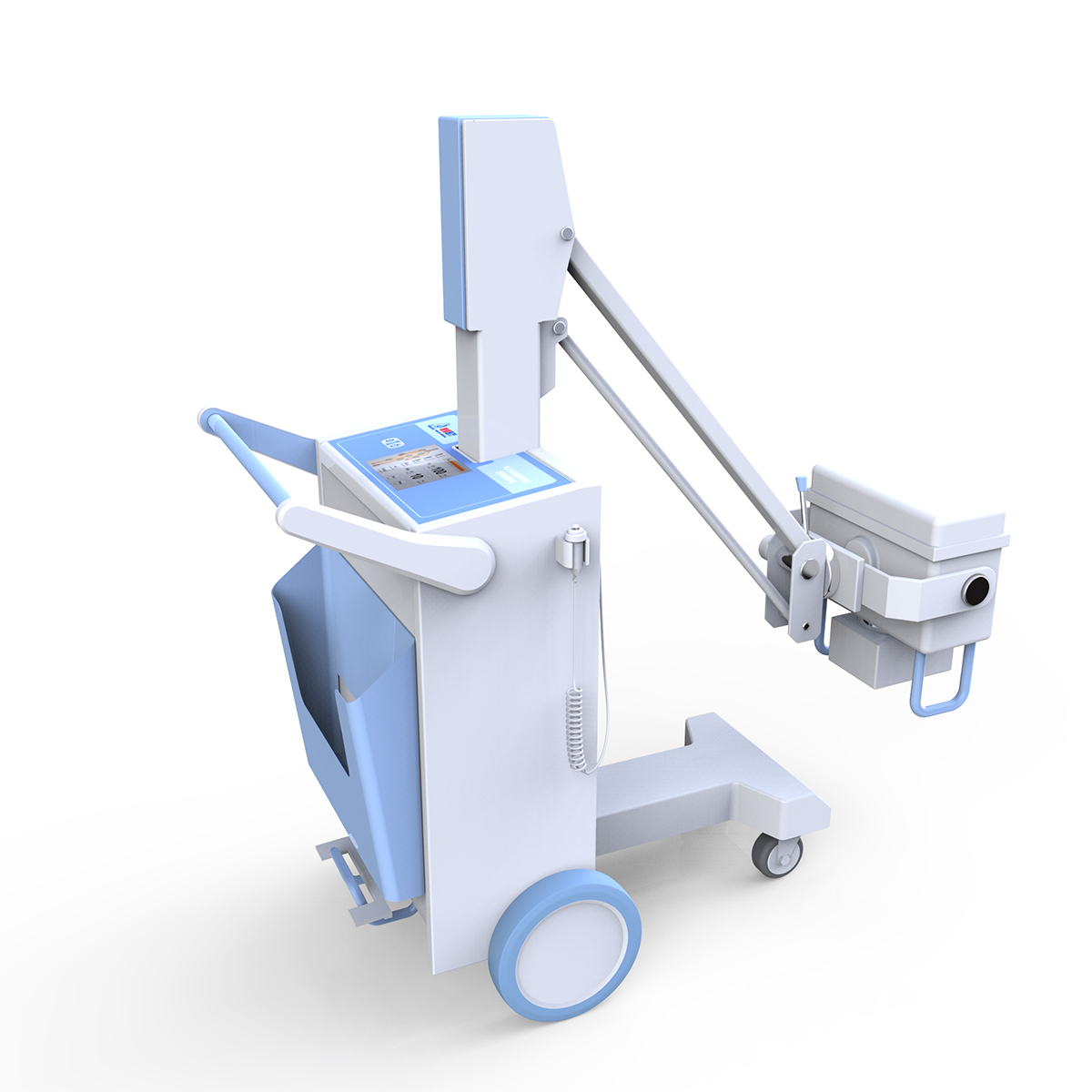

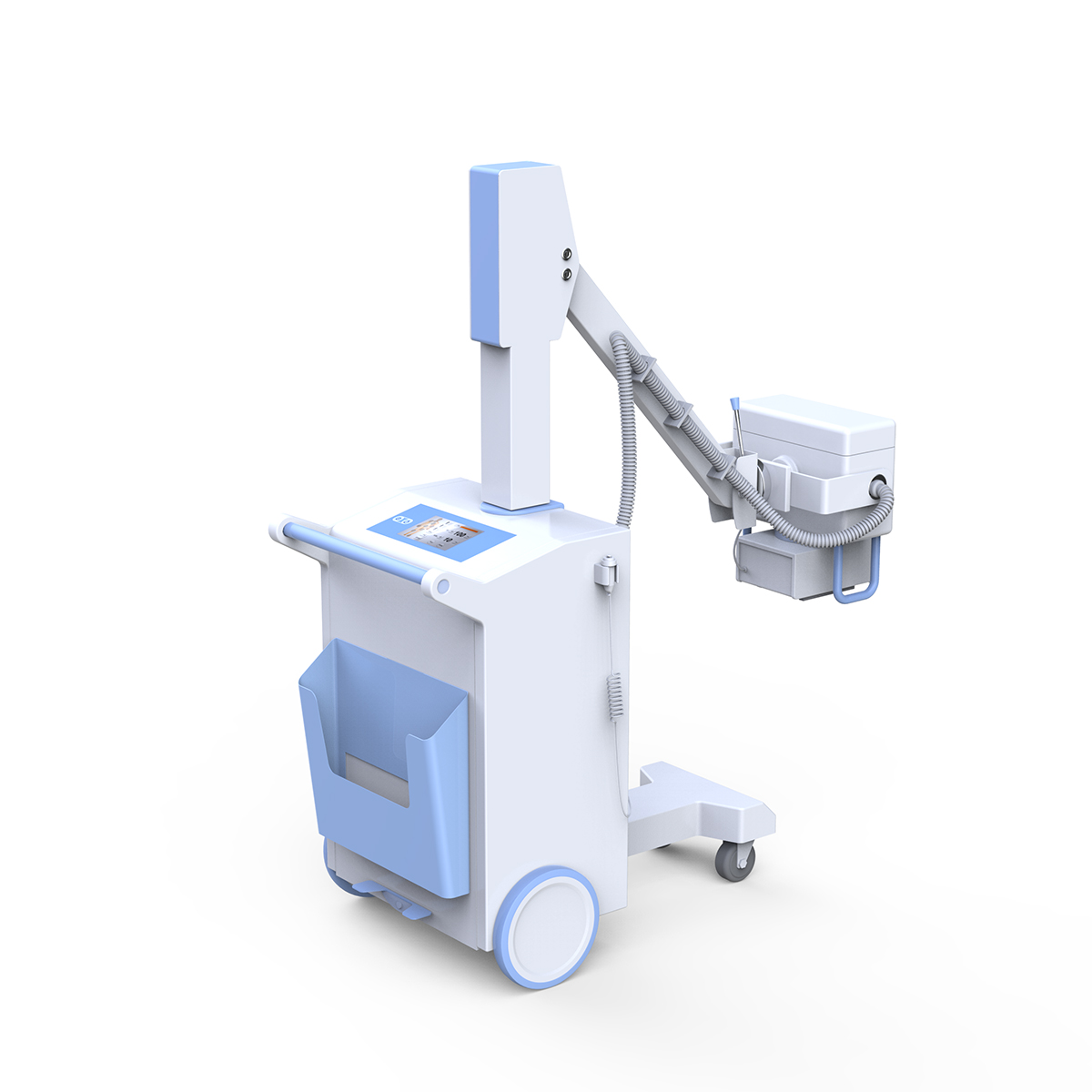

XM100/XM101A/XM101C/XM101D Hochfrequenz-Mobilröntgengeräte

Leistung

2,5 kW

3,5 kW

5 kW

Frequenz

50 kHz

Röntgenröhre

1.5

Röhrenspannung

40~100kV (Intervall 1kV)

Röhrenstrom

40~49kV, 50mA, 1~160mAs

40~49kV, 63mA, 1~125mAs

40~49kV, 100mA, 1~180mAs

50~59kV, 42mA, 1~160mAs

50~59kV, 55mA, 1~110mAs

50~59kV, 77mA, 1~140mAs

60~69kV, 36mA, 1~140mAs

60~69kV, 45mA, 1~90mAs

60~69kV, 64mA, 1~125mAs

70~79kV, 31mA, 1~125mAs

70~79kV, 40mA, 1~80mAs

70~79kV, 55mA, 1~110mAs

80~89kV, 28mA, 1~100mAs

80~89kV, 36mA, 1~71mAs

80~89kV, 49mA, 1~100mAs

90~100kV, 25mA, 1~80mAs

90~99kV, 32mA, 1~63mAs

90~99kV, 44mA, 1~80mAs

100–110 kV, 20 mA, 1–40 mA

100–109 kV, 32 mA, 1–63 mA

110–120 kV, 25 mA, 1–50 mA

mAs

1,0 ~ 160 mA (45 Schritte)

1,0~125mAs (43 Schritte)

1,0~180mAs (46 Schritte)

Stromversorgung

220 V ± 10 % 50 Hz    Innenwiderstand: ≤1,0 Ω

Operationsmethode

Kabel- und kabellose Steuerung

Eingebaute Batterie

NEIN

NEIN

NEIN

Ja
